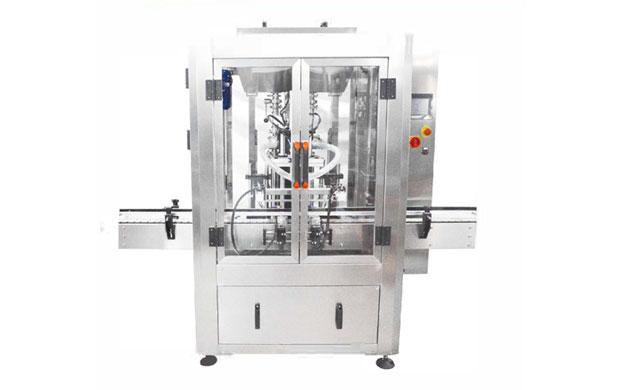

The automatic piston filling machine adopts quantitative filling of the plungerbottle-in, positioning, filling and bottle-out are all automatically controlled bythe PLC, conforming to the GMP standard.Applicable for medicine, food, dailychemicals, pesticides and fine chemicals, and other varieties of product filling.
INTRODUCTION
The automatic piston filling machine adopts quantitative filling of the plungerbottle-in, positioning, filling and bottle-out are all automatically controlled bythe PLC, conforming to the GMP standard.Applicable for medicine, food, dailychemicals, pesticides and fine chemicals, and other varieties of product filling.
FEATURES
1.Touch screen operation interface;
2.Up and down movement type filling effectively prevent the foam from beingproduced,easy to take apart and wash;
3.The filling accuracy can reach +1%;
4.The filling cylinder is ground, unique filling valve design, no leakage;
5.No filling without bottle and automatic shutdown function for bottle accumulation;
6.Design different positioning devices according to the actual situation of thebottle;
7.The equipment is easy to clean and can be disassembled without tools. lt canalso be cleaned online or sterilized at high temperature;
8.PLC programmable control use Japan Mitsubishi;
9.Frequency converter adopts France Schneider;
10.Pneumatic components adopt Taiwan Airtac;11.Material contact parts are made of SUS304# stainless steel;
12.The equipment meets the hygiene and safety standards. The user can choosethe glass protective cover;
Specification
Model | RF-GHS-1 | RF-GSF-2 |
Filling range | 50-1000ml | 50~1000ml |
Filling speed | < 20-40bottles/min ( Base on100 ~ 500ml ) | < 10-20bottles/min ( Base on 100 ~ 500ml) |
Measurement accuracy | ±1% | ±1% |
Power | 0.8kw、220v | 1.5kw、220v |
Working air pressure | 6~7kg/cm² | 6~7kg/cm² |
Gas consumption | 0.5-0.7m³/min | 0.5-0.8m³/min |
Weight | 300kg | 350kg |
