Powder/Granule/Liquid Packaging Machine
Specifications
| Materal type | Powders | Granules | Liquids |
| Model number | HY-320BF/HY-420BF/ HY-520BF/HY-620BF |
HY-320BK/HY-420BK/ HY-520BK/HY-620BK |
HY-320BY/HY-420BY/ HY-520BY/HY-620BY |
| Filling range | 100-400m1/400-1000ml/ 1000-2000ml/ 2000-5000ml |
100-400ml/400-1000mI/ 1000-2000ml/2000-5000ml |
100-400ml/400-1000ml/ 1000-2000ml/2000-5000ml |
| Sachet size | W:100-290mm L 100-380mm | ||
| Max. film width | 320/420/520/620mmm | ||
| Sachet type | Pllow bag | ||
| Filling method | Auger screw | Volumetric cups | Piston pump |
| Capacity | 20-50bag/min | ||
| Power | 220V50-60HZ/4KW | ||
| Dimension | 1000*1160*2300mm/1250*1160*2600mm/1550*1160*2600mm | ||
| Weight | 400KG/450KG/500KG/550KG | ||
| Auxiliary e.uipment | Automatic feeding machine + finished conveyor belt + rilbon coding machine | ||
| Optional functional device |
Inflatable/nitrogen device/corner device/exhaust device/punching device/ bag support device/static device/correction device |
||

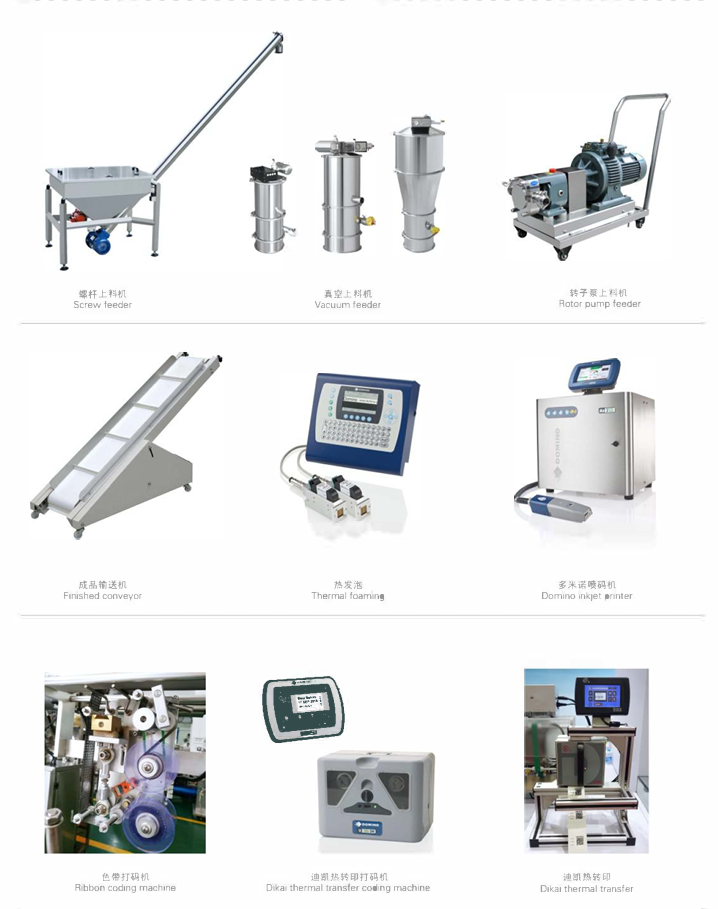

Auxiliary Equipment
