Overview of ultrasonic tube filling sealing machine
Applicable to: filling and sealing of various plastic or metal-plastic tubes in food, medicine, cosmetics, chemical and other industries.

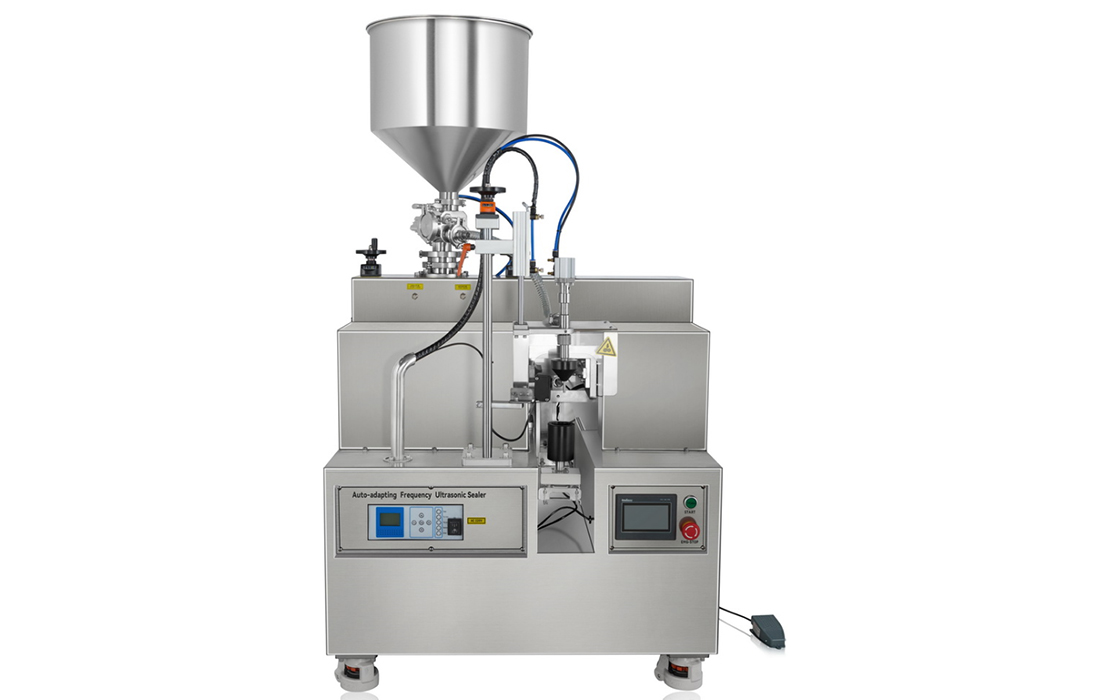

Ultrasonic tube filling sealing machine Machine Structure
Ultrasonic tube filling and sealing machine is a high-quality, high-performance liquid and paste container filling and sealing packaging machine. It adopts manual tube loading, automatic color mark orientation, automatic filling, automatic sealing and automatic trimming. Using PLC control, touch-type human-machine interface.
The operation of this equipment is simple, stable and reliable, which can help enterprises improve production efficiency and reduce labor intensity. It is the first choice for improving packaging grades.
| 1. Power Supply: 220v50Hz | 2. Air Pressure: 0.5Mpa | 3. Productivity: 10-15pcs/min |
| 4. Filling Volume: 6-60ml/10-120ml/25-250ml | 5. Filling Accuracy: ±1% | 6. Radius of Sealing: 13-50mm |
| 7. Height of Sealing: 50~210mm | 8. Frequency: 20KHz | 9. Power: 2600W |
| 10. Material: 304 Stainless Steel | 11. Wight: 180kgs | 12. Dimension: L850*736*1550mm |
| 1. | Ultrasonc System | Electronic Automatic Frequency Tracking Control | 2. | Mark Electric Eye | Omron, Japan |
| 3. | PLC | Coolmay, CN | 4. | Electric Relay | Omron, Japan |
| 5. | Touch Screen | Coolmay, CN | 6. | Sensory Switch | SICK, Germany |
| 7. | Air Cylinder | AirTAC, China Taiwan | 8. | Electromagnetic Valve | AirTAC, China Taiwan |
| 9. | Stepper Motor | JMC, CN | 10. | Foot Switch | DELIXI, CN |
| 11. | Air Source Processor | AirTAC, China Taiwan |
