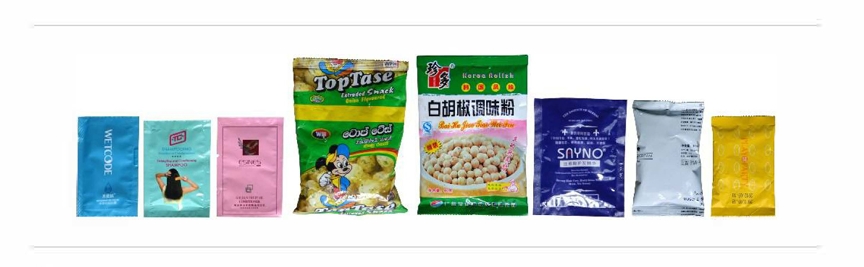

lt is suitable for automatic packaging of granules, liquidpastes and powder products in cosmetics, food, healthcare and pharmaceutical industries.The two machinesare packaged in parallel. which is suitable for customerswith small sites,large production capacity and littleinvestment in tne early stage
Applications
lt is suitable for automatic packaging of granules, liquidpastes and powder products in cosmetics, food, healthcare and pharmaceutical industries.The two machinesare packaged in parallel. which is suitable for customerswith small sites,large production capacity and littleinvestment in tne early stage.
Features
Specifications
| Model number | HY-K488 | HY-Y488 | HY-F488 |
| Filling range | 1-50ml | 1-50ml | 1-50ml |
| Rows | 1by2 1by4 | 1by2 1by4 | 1by2 1by4 |
| Sachel size | W: 30-100mm L:30-170mm | W: 30-100mm L:30-170mm | W: 30-100mm L:30-170mm |
| Max. film width | 220mm | 220mm | 220mm |
| Sachet type | 3sdes/4 sdes/stck | 3sdes/4 sdes/stck | 3sdes/4 sdes/stck |
| Filling method | Volumetric cups | Piston pump.magnetc pump | Augerscrew |
| Capacity | 40-160bag/min PPM | 40-150bag/min PPM | 40-150bag/min PPM |
| Power | 220V50-60HZ/3KW | 220V50-60HZ/3KW | 220V50-60HZ/3KW |
| Air | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa |
| Dimension(L x W x H) | 1240x 763 x 1655mm | 1240x763x1655mm | 1240x763x1655mm |
| Weight | 450KG | 450KG | 450KG |
