INTRODUCTION

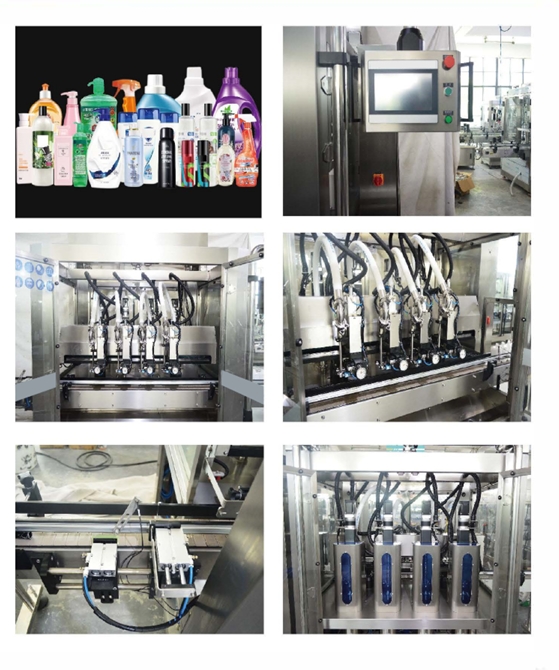

The automatic filling machine adopts the principle of plung quantitative filling.and the inlet, positioning, filling and out of the bottle are automati -cally controlledby the PLC, which conforms to the GMP standard.Suitable for medicine, fooddaily chemical, pesticide and fine chemical liquid paste filling. in the filling stationof the filling machine, because the bottle body continually move forward, trackingthe filling parts requires four functional actions: tracking down the insertion of thebottle mouth, tracking filling, fast rising and quick return. Each functional actioncan be decomposed into horizontal tracking motion and vertical lifting motion,andthefour functional actions form a movement cycle!

FEATURES
1.Touch screen operation interface;
2.Up and down movement type filling, effectively prevent the foam from beingproduced,easy to take apart and wash;
3.The filling accuracy can reach 1%;
4.The filling cylinder is ground, unique filling valve design, no leakage;
5.No filling without bottle and automatic shutdown function for bottle accumulation;
6.Design different positioning devices according to the actual situation of thebottle;
7.The equipment is easy to clean and can be disassembled without tools. lt canalso be cleaned online or sterilized at high temperature;
8.PLC programmable control use Japan Mitsubishi;
9.Frequency converter adopts France Schneider;
10.Pneumatic components adopt Taiwan Airtac;
11.Material contact parts are made of SUS304# stainless steel;
12.The equipment meets the hygiene and safety standards;

Specifications
