Suitable for square bottle single side and double sides labelinglt equipped with round bottle labeling mechanism,can be used forpositioning round bottle, square bottle and other shaped bottlegreatly improve the scope of the equipment application.
Product Description:

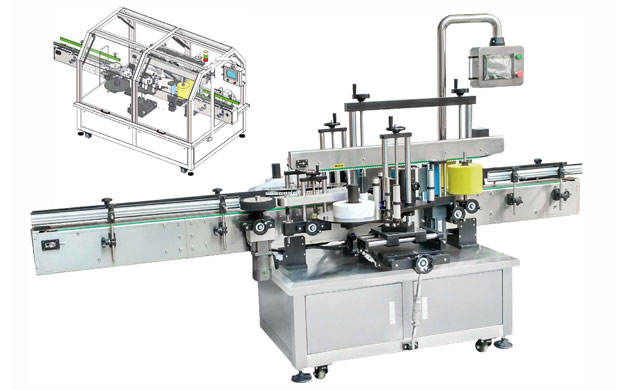

This machine is suitable for the surface of the flat plane, and the square bottle and even the surface of the alien bottle are labeled. The design of the host part uses the label transmission method of the importer, which solves some unstable factor in labeling. This machine has the detection of electric eyes and the tracking of the synchronizer to ensure the accurate synchronization of the bidding speed and the conveying speed. The conveying speed can be adjusted in the touch screen, simple operation, and high production efficiency. It is an ideal machinery in the hearts of many manufacturers.
Process：
Feed: Transfer can be connected or stand -alone through the conveyor belt.
Positioning sensor: The labeling machine is equipped with a sensor for detecting the location of the material to ensure that the label is accurate.
Tag supply: Tags are usually provided in the form of roll cylinders. The label is provided to the tag head through automatic rolling or tension control system.
Labeling: When the material is detected, the label head will accurately attach the label to the surface of the item.
Objective: After the label, the configuration compact device is configured to ensure that the label is fully bonded with the surface of the bottle.
Technical Description：
1) Automatic positioning: Equipped with advanced sensors, you can automatically detect the bottle, so as to accurately set the label position.
2) Adapt to different sizes: The flat label machine can adapt to a circular bottle of different sizes and shapes, and the size and position of the label can be adjusted to adapt to different containers.
3) Accurate labels: They can put labels on the items at high speed and high precision to ensure that the location of the label is accurate and avoid waste.
4) Custom labels: The labeling machine supports custom labels, which can print and stick different tag content according to the customer’s needs.
5) Simple operation: Use PLC and touch screen control to simplify the process of operation to reduce the possibility of errors.
6) Efficient production: Through automated labeling process, production efficiency can be significantly improved, and labor and time cost can be saved.
Main Technical Parameters:
| Power supply | AC 220V/50Hz |
| Power | 2.5 KW |
| Labeling Accuracy | ±1.0(Depending on the sample) |
| Bottle Labeling Size | 50-300mm |
| Label inner diameter | φ76 mm |
| Label outer diameter | φ350 mm |
| Production capacity | 60 to 200 per cubic per minute depends on the sample |
| Machine Dimension （L×W×H) | 3000X1400X1350(mm) |
| Machine Weight | 250(KG) |
Component List:
| Name | Place of origin | Brand |
| PLC | Germany | Siemens |
| Touch screen | Germany | Siemens |
| Motor | China | Stepping motor |
| Pneumatic Components | Taiwan | AirTAC |
| Optoelectronics | Germany | Sick |
| Inverter | China | Kokke |
| Obliged light eye | Japan | Matsushita |
Application：

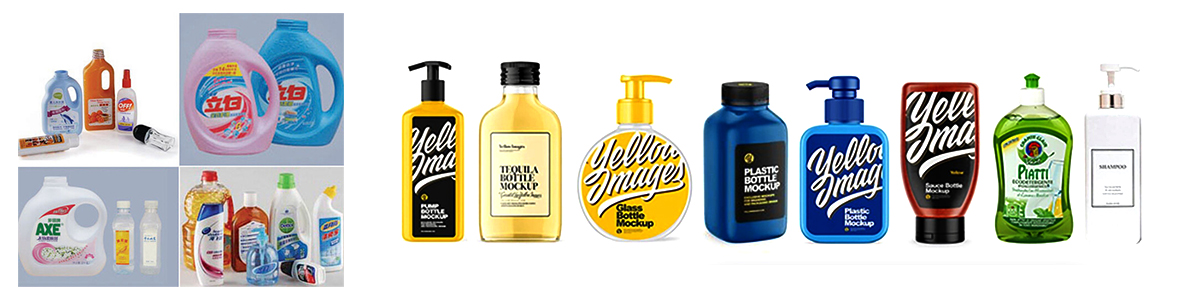

The flat label machine is widely used in foods and beverages, medicines, cosmetics, daily necessities and other industries. Whether it is a small -scale production workshop or a large -scale production line, the double -sided labeling machine can help enterprises improve efficiency and label attached quality.
