INTRODUCTION

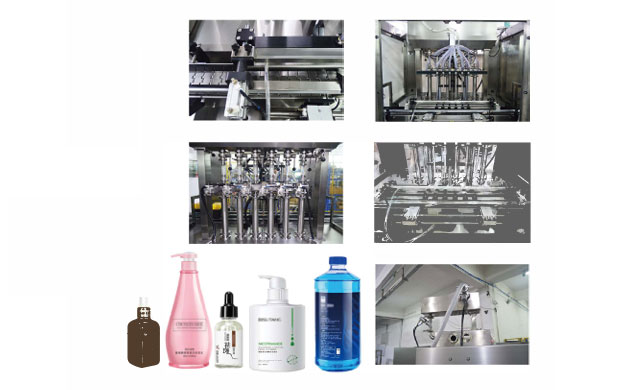

The machine is a high-tech filling equipment integrating microcomputerprogrammable control,photoelectric sensing and pneumatic execution. Thismachine is specially used for food, such as Baijiu, soy sauce, vinegar, red winevegetable oil, syrup, mineral water and other edible liquid, as well as the filling ofpesticide chemical liquid. Accurate filling and metering, no bubbles, no drippingand leakage. lt is applicable to the filling of 50-500ml, 100-1000ml, 500-5000mbottles (including special-shaped bottles)
Suitable for filling different types of containers, it can switch fillingspecifications in a few minutes, with short filling cycle and high productioncapacity. No need to add spare parts to replace the filling specifications, just tomake adjustments can be completed. Users can choose the filling volumeaccording to their own production capacity to determine the number of fillingheads, touch-type operation color screen can display the production statusoperating procedures, filling methods, etc.The screen is intuitive， simpleoperation, easy maintenance. Each filling head is equipped with a bottle-neck setting to ensure accurate injection alignment.
The design uses a straight-line method of grouping bottles-in andbottles-out to expand the filling function. Containers of various shapes can befilled effectively in this equipment.The international advanced gas filling valve isselected to ensure no leakage or drooling in the filling process. The powerful PLCsoftware supports the ideal filling operation and man-machine interface. Aloperations are completed on the touch screen.
Filling uses fixed runner parameters to control the filling time to achievedifferent metering filling. The precise time for pneumatic valve filling can be set to0.01 seconds, which can enable the measurement accuracy to be controlledwithin +1% error range, reduce unnecessary material loss, and improve usereconomic efficiency.The metering of each filling head can be individually adjustedto achieve consistent filling metering.The machine has set the bottle entrytechnology program, and no bottle or no counting is not filled.The filling is onlystarted when the number of bottles recorded by the counter matches the setnumber of filled bottles. The amount of filling can be adjusted to the requiredamount of filling, and then fine-tuning, you can get the ideal filling measurementaccuracy.
Note: Filling range and speed can be designed according to user needs todifferent filling heads.

Specification
