The multi-head piston automatic filling machine is a new generation ofautomatic filling machine developed by our company with many years ofproduction experience and absorbing world advanced technology.
Introduction:
The multi-head piston automatic filling machine is a new generation ofautomatic filling machine developed by our company with many years ofproduction experience and absorbing world advanced technology.lt adoptspiston-type quantitative principle, electrical and pneumatic components useworld-renowned brands, and PLC is used to control the man-machine interfacet features novel design, beautiful appearance, friendly interface, stronoadaptability， simple operation, accurate filling volume, and convenientmaintenance.Widely used in the filling of various liquids and pastes, replacementof filling valves (that is multi-head thick sauce full-automatic filling machine), canalso be filled with granular semi-fluid.paste, sauce.etc.
Product Description：
The fully automatic piston filling machine uses the principle of sewage of plunges. The bottle, positioning, filling, and outlet are automatically controlled by PLC. Applicable medicine, food, daily chemical, pesticide and fine chemical liquid filling.

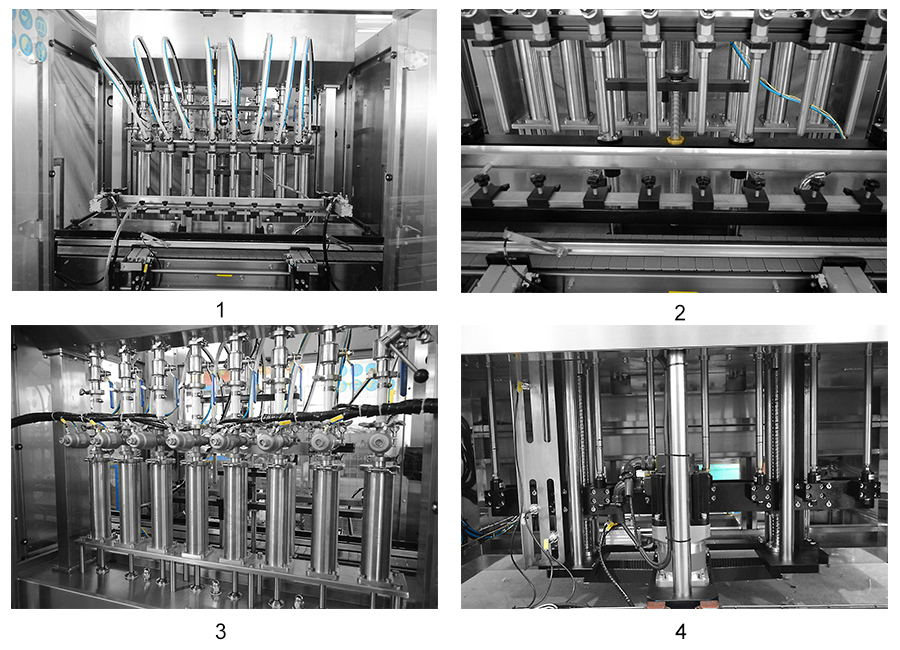

1. Infusion system: The filling system uses servo driver technology to achieve more accurate and stable filling process. Use the servo motor as a driver system to control the upper and lower movements of the piston to achieve filling, which has higher accuracy and control capabilities.
2. Infalling head: Special leak -proof device, irrigation without drawing, dripping.
4. Servo drive device: The servo motor can accurately control the motion of the piston to achieve accurate filling.
Features:
1. Adopts world-famous brands of electrical and pneumatic components, lowfailure rate,reliable performance, long service life!
2. Material contact parts are made of stainless steel, easy to disassemble andassemble,easy to clean and meet the requirements of GMP.
3. Easy to adjust filling volume and filling speed, operated and displayed by touchscreen,beautiful appearance;
4. With no bottle no filling function,liquid level automatic control feeding.
5. No need to change parts, you can quickly adjust the various specifications ofthe shape of the bottle.
6. The filling head is equipped with a special leak-proof device. No wire drawingor drip leakage occurs during filling.
Note: The irrigation range and speed can be designed to design different irrigation heads according to user needs.
Specification:
| Model | RF-GSF-4 | RF-GSF-6 |
| Filling range | 50~1000ml | 50~1000ml |
| Filling speed | < 15-25 bottles/min ( Base on100~500ml） | < 20-35 bottles/min ( Base on 100~500ml) |
| Measurement accuracy | ±1% | ±1% |
| Power | 2.2kw、220v | 2.5kw、220v |
| Working air pressure | 6~7kg/cm² | 6~7kg/cm² |
| Gas consumption | 0.5-0.7m³/min | 0.7-0.9m³/min |
| Weight | 600kg | 700kg |
Main Technical Parameters：
| 4 Piston Filling Machine | |
| Power supply | AC 220V/50Hz |
| Power | 2 KW |
| Filling Range | 100-1000ml can be customized |
| Production capacity | 16-30（Bottles/Min） |
| Working pressure | 0.5-0.7 MPa |
| Filling Accuracy | ±1％ |
| Machine Dimension （L×W×H) | 2000X1400X2100(mm) |
| Machine Weight | 600(KG) |
| 6 Piston Filling Machine | |
| Power supply | AC 220V/50Hz |
| Power | 2.5 KW |
| Filling Range | 100-1000ml can be customized |
| Production capacity | 24-36（Bottles/Min） |
| Working pressure | 0.5-0.7 MPa |
| Filling Accuracy | ±1％ |
| Machine Dimension （L×W×H) | 2000X1400X2100(mm) |
| Machine Weight | 700(KG) |

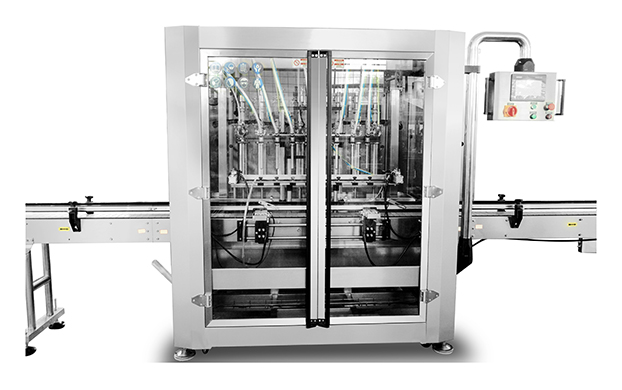

| 8 Piston Filling Machine | |
| Power supply | AC 220V/50Hz |
| Power | 2 KW |
| Filling Range | 100-1000ml can be customized |
| Production capacity | 16-40（Bottles/Min） |
| Working pressure | 0.5-0.7 MPa |
| Filling Accuracy | ±1％ |
| Machine Dimension （L×W×H) | 2000X1400X2100(mm) |
| Machine Weight | 750(KG) |
| 12 Piston Filling Machine | |
| Power supply | 380/220V 50Hz |
| Power | 5 KW |
| Filling Range | 100-1000ml can be customized |
| Production capacity | 80-120（Bottles/Min） |
| Working pressure | 0.5-0.7 MPa |
| Filling Accuracy | ±1％ |
| Machine Dimension （L×W×H) | 2000X1400X2000(mm) |
| Machine Weight | 800(KG) |
Component List：
| Name | Place of origin | Brand |
| PLC | Japan/Germany | Mitsubishi/Siemens |
| Touch screen | Germany | Siemens |
| Servo motor | China | Huichuan |
| Intermediate relay | Japan | Omron |
| Switch | China | Dual subject |
| Pneumatic Components | Taiwan | AirTAC |
Appliscation:
1. Pharmaceutical: It is used to fill the medicinal solution, paste or paste to the medicine bottle.
2. Cosmetics: It is used to fill cosmetics, skin care products, perfumes, etc. into various containers.
3. Food and drinks: used to fill edible oil, jam, sauce, drink, etc.
4. Industrial lubricant: used to fill industrial liquids such as lubricating oil, grease, etc.
